Name: 12 Power Transfer Circuits 8bar Air Rotary Union with RC18 Connector for Industrial Applications
Brand: Panlink
Price: 1 USD

Brand Name : Panlink

Model Number : PSR-TS-13P-1RC

Certification : ISO 9001: 2015, CE

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T

Supply Ability : 40 Million a Year

Delivery Time : 4 Weeks

Packaging Details : Carton Box, EPE Foam, Wooden Box(For Large Goods)

Circuits : 12 for Power Transmission

Max Pressure & Media : 11.6PSI (8bar) Air

Connector Size : RC1/8´´

Voltage Rating : 220-240VAC

Protection Degree : IP51(higher or lower on request)

Contact Now

1-Channel 8 bar Air Rotary Union RC1/8´´ with12 Power Transfer

PSR-TS-13P-1RC

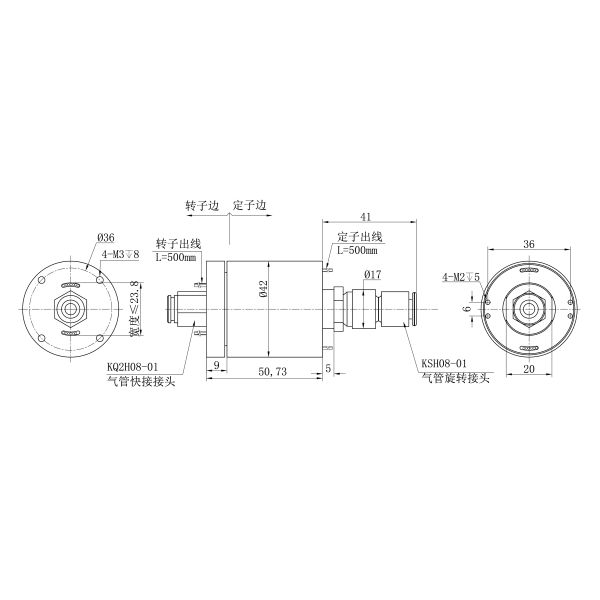

Drawing (Dimensions in Millimeters)

12 Power Transfer Circuits 8bar Air Rotary Union with RC1/8 Connector for Industrial Applications

Specification:

Circuits	12 for Power Transmission, 1 for Fluid Transmission
Fluid Rotary Union Specifications
Max Pressure & Media	11.6PSI (8bar) Air
Connector Size	RC1/8´´
Torque	1.0N•m
Housing Material	Aluminum Alloy
Operating Temperature	-4℉ to +176℉ (-20℃ to +80℃)
Electrical Specifications
Voltage Rating	220-240VAC
Current Rating	1A
Insulation Resistance	Max 500MΩ @ 500VDC
Dielectric Noise	500VAC @ 50Hz, 60s
Electric Noise	Max 40mΩ
Lead Cable	Teflon28 Wire
Mechanical Specifications
Rotating Speed	300rpm
Operating Temperature	-4℉ to +158℉ (-20℃ to +70℃)
Storage Temperature	-13℉ to +167℉ (-25℃ to +75℃)
Operating Humidity	0~95%RH
Torque	1.0N•m
Contact Material	Precious Metal
Housing Material	Aluminum Alloy
Protection Degree	IP51(higher or lower on request)
Shock	GB/T 2423.5 (IEC 60068-2-27)
Vibration	GB/T 2423.10 (IEC 60068-2-6)
